Customized Metal Assemblies: Precision Stamped Clips, Fastening Screws, and Spacing Washers

Introduction:

Introducing our meticulously crafted assembly parts, each designed for optimal performance:

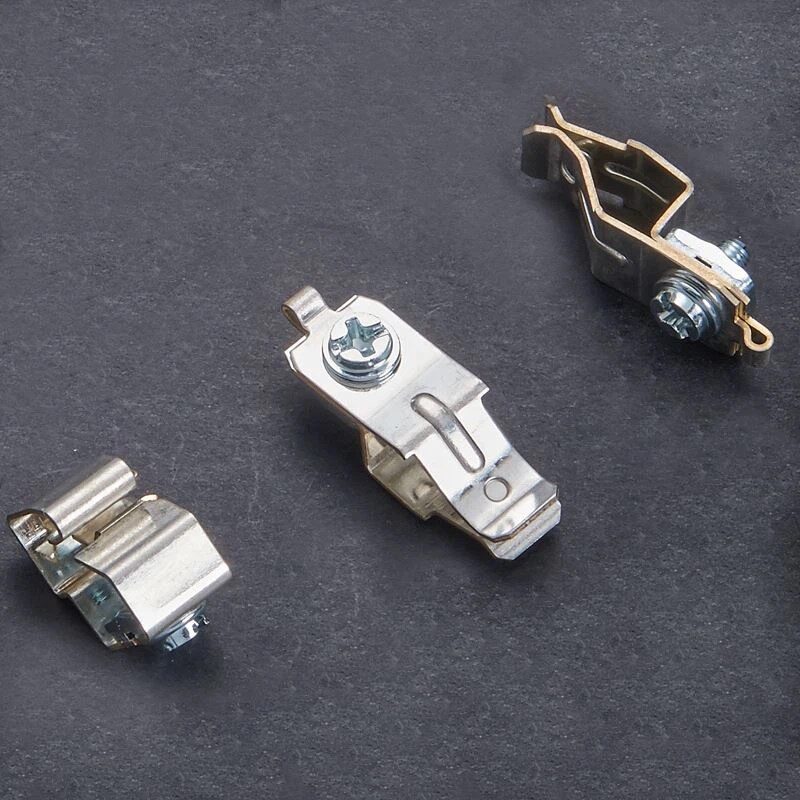

• Stamped clip: Made from H62 brass with a nickel base and tin plating, this clip meets high standards after a thorough inspection. When assembled with the square washer and M3 screw, it maintains a parallelism of 0.1. The clamping force of the screw is between 0.2-0.5Nm, ensuring stability.
• M3 Screw: Manufactured from 1008 steel and zinc-plated, this screw undergoes a rigorous 36-hour salt spray test to ensure corrosion resistance. It meets the stringent Grade 4.8 strength requirement.
• Square Washer: Made of DC04 steel, zinc plated, and precision stamped, this washer withstands a 36-hour salt spray test. When assembled with the M3 screw, it undergoes a 1.2Nm torque test and gauge check to ensure a secure connection.

Comprehensive quality control (QC) evaluations are performed after assembly to ensure strict adherence to our exceptional quality standards. You can count on our meticulously engineered components to meet your industrial needs with unmatched precision and reliability.

Specification

Materials: steel, stainless steel, brass, copper, bronze, aluminum, titanium, etc

Size: as customers’ request

Color: according to customers’ needs

Tolerance: 0.01mm

Surface Treatment: brushing, polishing, electrophoresis, anodized, powder coating, plating, silk screen, laser engraving, etc

Production Process: cold frogging, machining and CNC, stamping, welding, bending

Certifications: ISO 9001

Test: 48H salt-spray testing, 2D testing, plainness testing

Quality Control: 100% inspection before shipment

OEM/ODM: available

Samples: free available

Sample Time: 7-12 Days

Lead Time: 15-25 Days

Payment Term: T/T, L/C 30% deposits, before the ship to pay the balance end. Freight are quote under your request

Packing: plastic bag, carton and pallet or according to customer’s needs

Delivery Term: by sea/express

Application: machinery, chemical industry, environmental, furniture, industrial, construction, electronic, appliance, automotive

Surface Finishing Options

• Brush Finish: Achieving a consistent brushed texture, enhancing both visual appeal and tactile experience.
• Mirror Polishing: Employing precise techniques for a sleek, reflective surface, ensuring a sophisticated appearance.
• Electrocoating: Providing uniform corrosion-resistant coating through an electrochemical process, ensuring enduring protection.
• Anodization: Creating a robust oxide layer, enhancing corrosion resistance and offering vibrant color selections.
• Powder Coating: Applying a resilient powder layer, delivering excellent protection and a range of color choices.
• Metal Plating: Utilizing diverse metals such as zinc, nickel, or chrome, enhancing appearance and corrosion resistance.
• Silk Screening: Applying intricate designs with accuracy, ensuring clear and detailed markings.
• Laser Etching: Utilizing laser technology for precise, permanent markings, elevating brand identity and traceability.

Our unwavering commitment to diverse, high-quality surface finishes ensures that our Custom Metal Assemblies not only meet but surpass industry standards, excelling in both functionality and visual allure.
