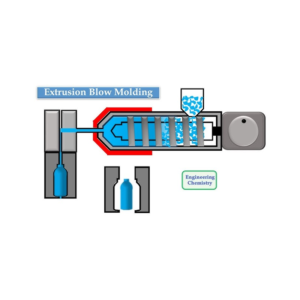

Extrusion blow molding machines have revolutionized manufacturing, providing a cost-effective way to produce a variety of plastic products. From bottles and containers to car parts and toys, these machines play a key role in shaping the modern world. In this blog, we’ll delve into the intricacies of an extrusion blow molding machine, exploring its capabilities, applications, and the key factors that influence its effectiveness.The extrusion blow molding process involves taking a thermoplastic material, melting it and forming a hollow tube called a parison. The parison is then placed into the mold cavity and inflated to take on the shape of the mold. The result is a seamless hollow product with consistent wall thickness, making it ideal for a variety of applications.

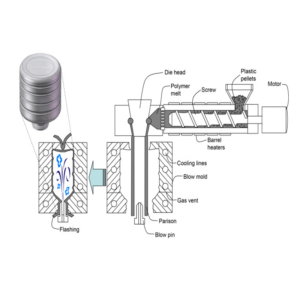

One of the key components of an extrusion blow molding machine is the extruder, which is responsible for the melting and shaping of the raw material. The extruder consists of a screw mechanism that feeds plastic pellets into a heated barrel. As the particles pass through the barrel, they gradually melt and compress, forming a molten mass that is ready for the next stage of the process.

Once the molten plastic is ready, it is forced through a mold, shaping it into a hollow tube. The tube or parison is then transferred to the mold cavity, where it is clamped in place and inflated using compressed air. Air pressure forces the parison to take on the shape of the mold, resulting in a seamless hollow product.

The versatility of extrusion blow molding machines is reflected in the wide range of products they can produce. From small complex parts to large complex containers, these machines meet the diverse needs of various industries. For example, the automotive industry relies on extrusion blow molding to produce fuel tanks, air ducts, and other components. Likewise, the packaging industry utilizes these machines to manufacture bottles, plastic barrels, and other containers.By adding various additives and colors to the raw materials, the efficiency of the extrusion blow molding machine is further improved. This allows manufacturers to create products with specific properties, such as UV resistance, chemical resistance or enhanced aesthetics. Additionally, the seamless nature of the products produced by these machines reduces the need for secondary operations, resulting in cost savings and increased efficiency.

In the magical world of Extrusion Blow Moulding (EBM), plastic gets a little hot and bothered as it’s melted and squeezed into a hollow tube, known as a parison. This parison then gets a big hug from a cooled metal mold, which traps it inside. Next, a burst of air comes in like a superhero, inflating the parison into the shape of a bottle, container, or whatever part it wants to be. Once the plastic has cooled down, the mold opens up, and out pops our newly formed creation.

Now, in the land of EBM, there are two main types of adventures: Continuous and Intermittent. In Continuous Extrusion Blow Moulding, it’s like a never-ending conveyor belt of parisons being pumped out, while in Intermittent blow molding, things happen in spurts. Picture it like a yo-yo, where the plastic takes a break between each push.

But wait, there’s more! With Intermittent blow molding, there’s a twist. It can either be straight-up intermittent, where the plastic takes a breather between pushes, or it can be the accumulator method. This method is like a plastic reservoir, gathering up melted plastic until there’s enough to burst out and form a parison. It’s kind of like waiting for the perfect moment to strike.

Now, what’s the deal with all these different types of machinery? Well, you’ve got your rotary wheel blow molding systems, which are like the Ferris wheel of EBM, and your shuttle machinery, which shuttles parisons back and forth like a busy bee.

Then there’s the reciprocating screw machinery, which is like a piston pumping away, and the accumulator head machinery, which is all about saving up that melted plastic for a grand reveal.

And what kind of wonders can EBM create, you ask? Oh, just about everything hollow you can imagine! From milk bottles to shampoo bottles, even watering cans and automotive ducting – EBM does it all.

But like any hero, EBM has its strengths and weaknesses. On the plus side, it’s got low tool and die costs, lightning-fast production rates, and the ability to mold some pretty complex parts. But on the downside, it’s limited to making hollow parts, isn’t the strongest out there, and can be a bit of a hassle when it comes to recycling. In summary, extrusion blow molding machines are the cornerstone of modern manufacturing, providing a versatile and efficient method for producing a wide range of plastic products. Their ability to create seamless hollow products with consistent wall thickness makes them indispensable in industries such as packaging, automotive and consumer goods. As technology continues to advance, we expect more innovations to emerge in the extrusion blow molding space, further solidifying its position as a key player in the manufacturing space. Whether you are a manufacturer looking to streamline your production process or a consumer interested in the products that shape our daily lives, understanding the intricacies of extrusion blow molding machines is critical to understanding their impact on the world around us.

So, there you have it – the wacky and wonderful world of Extrusion Blow Moulding! Where plastic gets a little hot under the collar and comes out looking like a superstar!LOL.
