Are you evaluating one-way valve options for a medical device, micro-pump, condiment dispenser, or portable consumer product? At Thesun Industry we design and manufacture custom silicone duckbill valves using precision liquid silicone rubber injection molding (LSR). This guide, written from a manufacturer’s perspective, explains what duckbill valves are, where they shine, their core advantages, and how to choose the right valve and supplier — whether you’re sourcing locally or working with suppliers in China.
What Are Silicone Duckbill Valves?

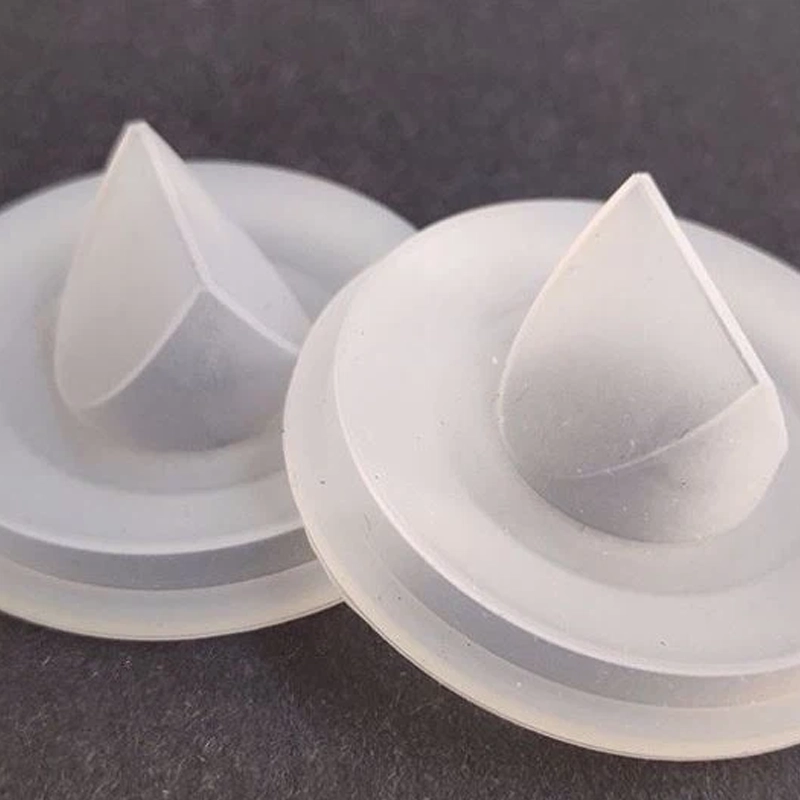

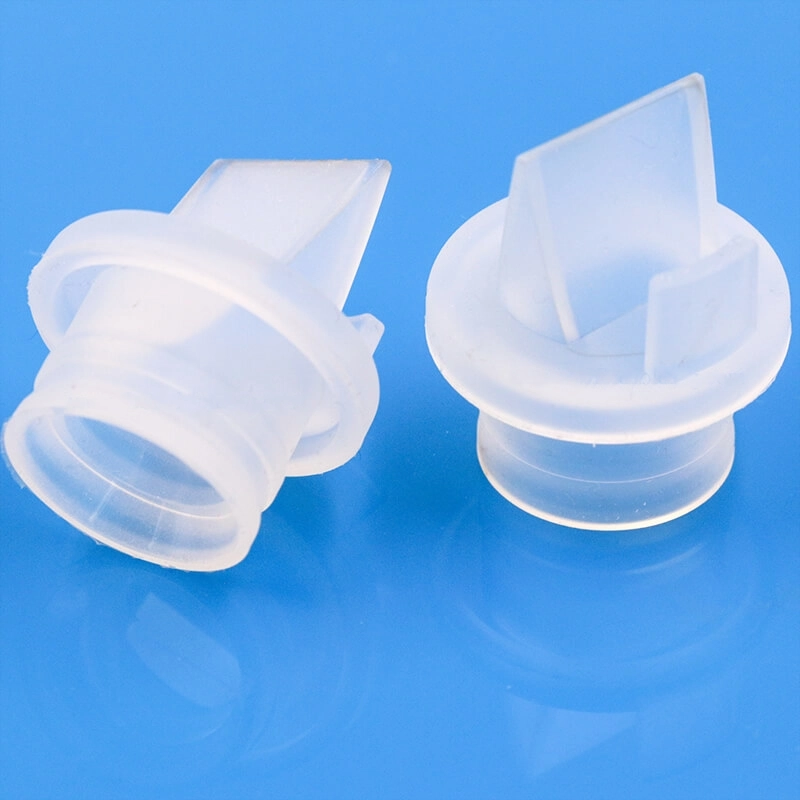

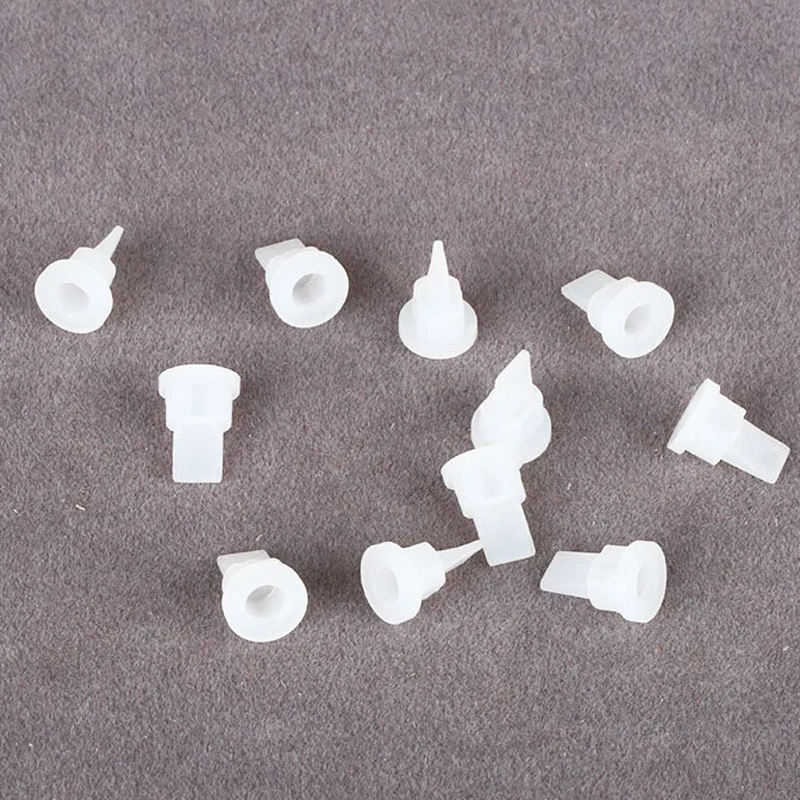

A silicone duckbill valve (also called a duckbill one-way valve, duckbill check valve, elastomeric duckbill valve, or rubber duckbill valve) is a simple, flexible valve molded from an elastomeric material. Its outlet resembles a duck’s beak — two tapered lips that open under forward pressure and close tightly when pressure reverses. Because the design is essentially a monolithic membrane with no metal springs or moving parts, it is compact, low-cost, and ideal for low-pressure, low-flow, and contamination-sensitive systems.
Applications Of Silicone Duckbill Valves Across Industries
Silicone duckbill valves are used wherever compact, reliable one-way flow control is needed:
- Medical & Life Sciences: breathing circuits, disposable resuscitation devices, IV/infusion accessories, and sampling cartridges — chosen for biocompatibility and sterilization tolerance.
- Microfluidics & Analytical Instruments: precise directional flow in micro-pumps, reagent dispensers, and lab-on-a-chip systems.
- Food & Beverage & Personal Care: squeeze-bottle dispensers, travel-size cosmetics, and condiment caps where hygiene and leak-free storage matter.
- Consumer & Portable Devices: battery-powered air pumps, portable humidifiers, and travel bottles — favored for compactness and silent operation.
- Automotive & Industrial: small venting and drain valves in low-pressure circuits where chemical resistance is required.
Advantages Of Silicone Duckbill Valves
Silicone duckbill valves deliver multiple practical benefits:
- Low cracking pressure & fast response: They open at minimal differential pressure and reseal almost instantly, which is critical for sensitive dosing and breathing systems.
- No moving metal parts: Eliminates spring wear, reduces noise, and prevents metal particulate contamination.
- Compact, lightweight & easy to integrate: Can be molded as pop-in inserts or overmolded into housings, reducing part count and assembly steps.
- Biocompatibility & sterilization: Medical-grade LSR withstands autoclaving and many chemical sterilants; suitable for single-use and reusable medical applications.
- Chemical & temperature resilience: Proper compound selection (LSR, FVMQ, EPDM) allows compatibility with oils, solvents, and wide temperature ranges.
- Cost-effective at scale: Multi-cavity LSR tooling and automated injection molding lower per-part cost for large volumes.
- Low maintenance & long life: Excellent elastic recovery and low compression set translate into predictable long-term sealing behavior.
Choosing The Right Silicone Duckbill Valve
Selecting the correct duckbill valve requires matching design, material, and supplier capability to your application needs:
Design & Performance Parameters
- Cracking pressure (target psi/kPa) and flow curve — define how easily the valve opens and the required throughput.
- Lip geometry & wall thickness — tune flow rate and sealing force.
- Seat interface — make sure the valve seats reliably into your mating geometry (cap, manifold, or pump head).
- Cycle life & fatigue — specify expected actuation cycles and test accordingly.
Material Selection
- Medical-grade LSR (platinum-cured) for biocompatibility and sterilization.
- Fluorosilicone (FVMQ) for hydrocarbon/fuel compatibility.
- EPDM/NBR for specific chemical resistance or cost-sensitive industrial uses.
Durometer (shore A), tear strength, compression set, and elongation must be specified and validated against end-use conditions.
Testing & Qualification
Insist on supplier-provided testing:
- Cracking/opening pressure and flow-vs-pressure curves.
- Leak/drool tests under inverted storage and over time.
- Cycle life/aging (mechanical and thermal).
- Material compatibility with actual fluids/formulations.
- AOI and dimensional SPC for slit geometry and critical dimensions.
Supplier Capabilities to Verify
When evaluating vendors — whether local or China-based suppliers — check for:
- High-precision LSR tooling and multi-cavity balance.

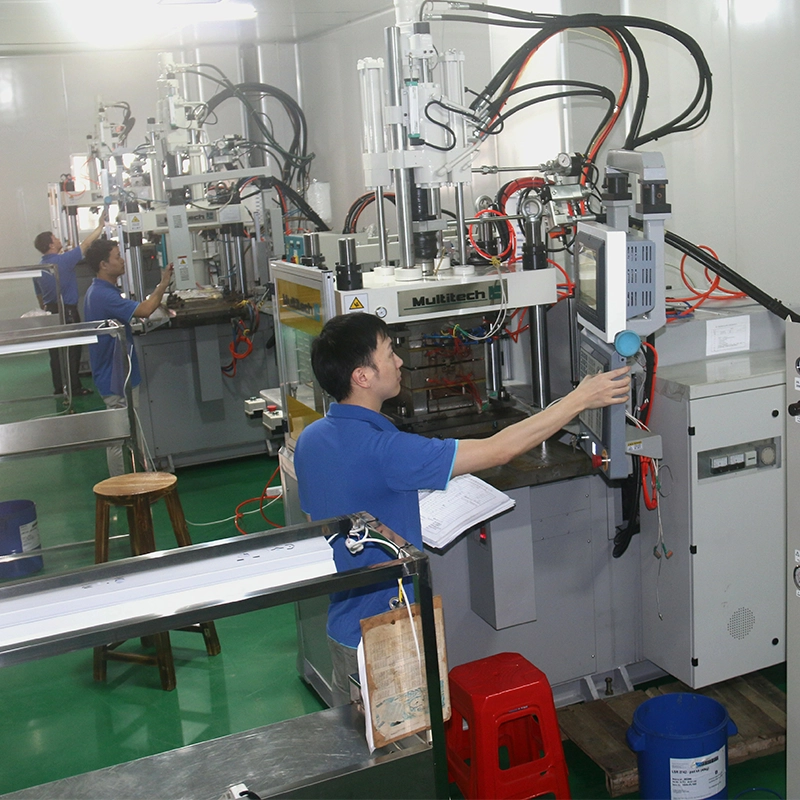

- Automated molding lines with shot-by-shot metering and AOI for slit inspection.

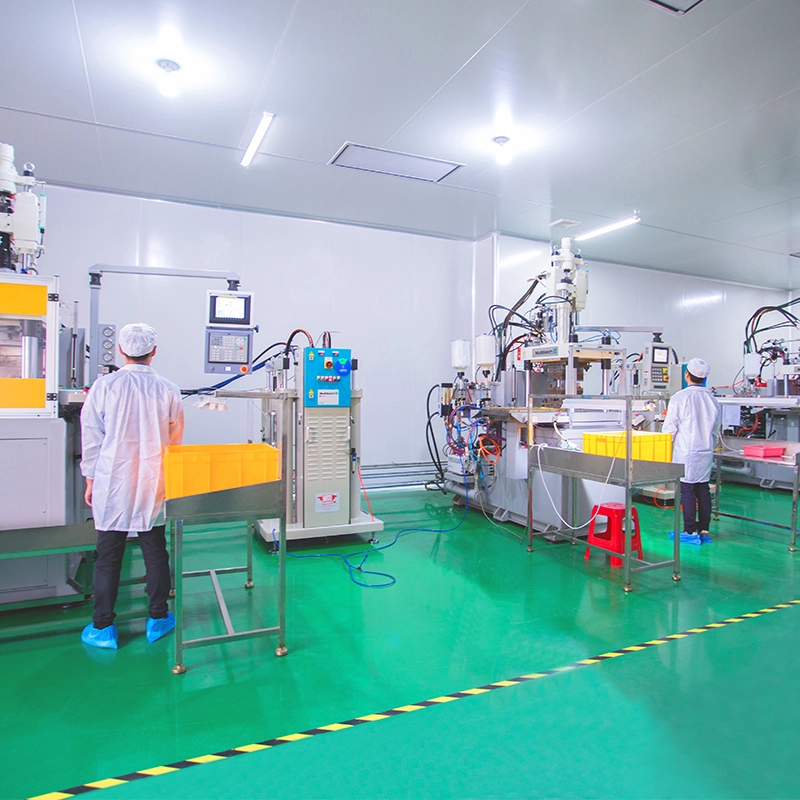

- Cleanroom or controlled environments for medical parts, plus batch traceability and material CoAs.
- Engineering support for DFM, prototyping (soft tooling), and pilot runs.
- Certifications (e.g., ISO 13485 for medical, ISO 9001) and sample/testing programs.
Conclusion
Silicone duckbill valves (duckbill one-way valves, duckbill check valves) are elegant solutions for compact, hygienic one-way flow control. Their success depends on precise geometry, correct elastomer selection, and rigorous testing. At Thesun Industry in China we provide turnkey development: DFM, precision liquid silicone rubber injection molding, performance validation, and volume production. If you’re sourcing custom Silicone Duckbill Valves, need sample validation, or want a supplier audit for Chinese manufacturers, send your specs, target cracking pressure, and projected volumes — we’ll prepare a practical prototype and qualification plan.
