As technology continues to evolve, membrane switches are becoming indispensable in a wide range of industries. Their unique design, exceptional functionality, and reliability make them a key component in many electronic products. In this post, we’ll take a deep dive into membrane switches—exploring their basic principles, types, manufacturing processes, and how they stack up against other switch technologies. We’ll also throw in some real-world industry examples to help you understand just how versatile and vital membrane switches can be.
1. What Is a Membrane Switch and How Does It Work?
What is a Membrane Switch?
A membrane switch is a flexible, multi-layered switch typically composed of conductive layers, insulating layers, and a button film. What sets membrane switches apart from other switches is their ability to create a connection or break the circuit with just a simple press on the surface. Their design is incredibly simple yet highly effective, offering high reliability and the ability to be customized for a wide variety of shapes and functions. These switches are found in everything from household appliances and industrial machinery to sophisticated medical equipment and automotive applications.
The Mechanics Behind the Magic
The basic working principle of a membrane switch is fairly straightforward: it relies on a combination of pressure, conductive films, and isolation layers. Typically, two thin films are layered together, one conductive and one isolating. When you press the switch, the conductive layer compresses the gap between the two films, closing the circuit and activating the switch.

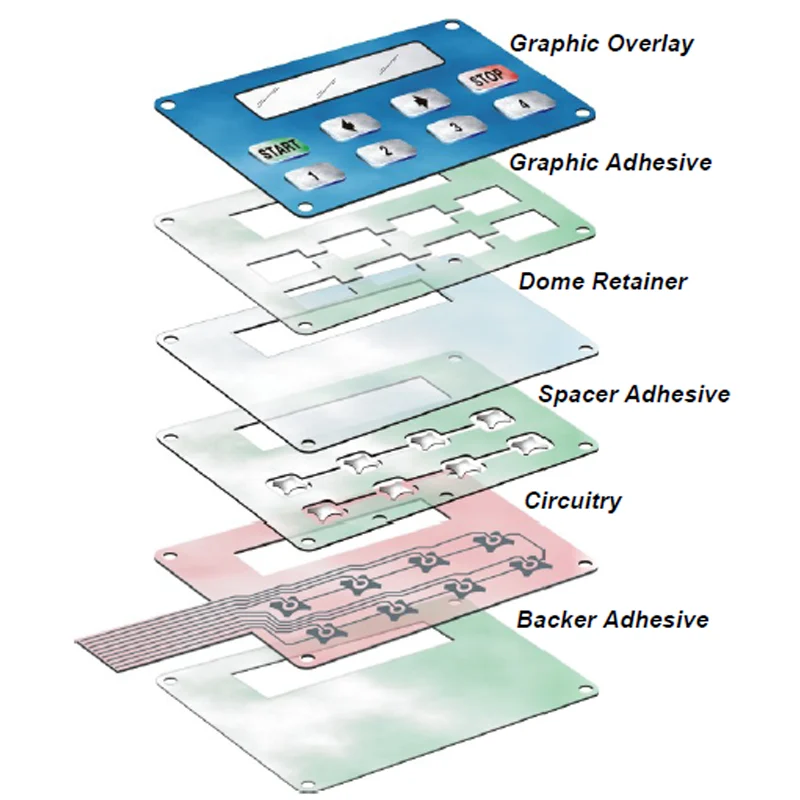

- Conductive Film(Circuitry Layer): Made of silver paste or copper foil, this layer carries the electrical current.
- Isolation Layer(Spacer Adhesive,Light Blue + Green Spacer Adhesive Layers): Usually transparent, this insulating layer ensures the switch functions properly by preventing short circuits.
- Button Film(Dome Retainer + Graphic Overlay,Upper Green Layer + Blue Graphic Panel): The outermost layer, made of PET, PC, or PVC, which is printed with labels or icons for functionality and provides the tactile feedback users need.
This design offers high flexibility and reliability while keeping the switch compact and simple.
2. Types of Membrane Switches and How to Choose the Right One
Popular Types of Membrane Switches:
- Button-style Membrane Switch: The classic version, where physical pressing completes the circuit. Commonly found in TV remotes, appliances, and control panels.
- Slider Membrane Switch: Perfect for devices that require continuous adjustment, such as volume or brightness controls.
- Touch Membrane Switch: These work by sensing touch rather than pressure, making them ideal for smart home controls and touchscreen devices.
- Proximity Membrane Switch: Using capacitive sensing, these switches activate when a hand comes near, eliminating the need for direct contact. They’re especially useful in medical equipment or environments where hygiene is critical.
How to Choose the Right Membrane Switch
Choosing the right membrane switch depends on your specific application. Here’s what to consider:
- Water Resistance: If your device is exposed to water or moisture (think kitchen appliances or medical devices), you’ll want a membrane switch with excellent waterproofing capabilities.
- High-Temperature Resistance: For applications in high-temperature environments (such as industrial equipment or medical devices), ensure you select materials that can withstand extreme heat.
- Corrosion Resistance: If your switch will be exposed to chemicals or cleaners (like in industrial or laboratory settings), choose a membrane switch designed to resist corrosion and extend the product’s lifespan.
3. Membrane Switches vs. Other Switch Technologies
Membrane Switch vs. Traditional Mechanical Switches
- Membrane Switches: No moving parts, so they’re durable, waterproof, dustproof, and ideal for demanding environments. They’re also compact and highly customizable.
- Mechanical Switches: Offer great tactile feedback but have moving parts that wear out over time. They don’t offer the same level of protection against moisture or dust as membrane switches.
Membrane Switch vs. Touchscreens
- Membrane Switches: Lower cost and great for frequent pressing, with superior waterproof and dustproof qualities. Ideal for simpler controls in rough environments.
- Touchscreens: Highly responsive and offer interactive functionality, but they come with a higher price tag and may struggle in extreme environments (especially if exposed to water or dust).
Membrane Switch vs. Light-sensitive Switches
- Membrane Switches: Offer tactile, physical feedback, making them highly user-friendly in traditional control settings.
- Light-sensitive Switches: These rely on light conditions to operate and are great for touchless control, but they’re sensitive to external lighting, which can limit their use in certain environments.
4. Membrane Switch Manufacturing: The Process and Materials
Choosing the Right Materials
The material selection process is crucial for membrane switches. Common materials include:
- PET (Polyethylene Terephthalate): Transparent, durable, and an excellent electrical insulator. It’s commonly used for button films.
- PC (Polycarbonate): High strength and impact resistance, perfect for switches that need to withstand wear and tear.
- PVC (Polyvinyl Chloride): A cost-effective option for simpler membrane switches.
Manufacturing Process:
Creating a membrane switch involves several key stages:
- Design and Layout: Engineers design the switch layout and functionality to meet the specific needs of the product.
- Lamination: The conductive, insulating, and button films are bonded together using heat or cold pressing.
- Printing and Etching the Conductive Layer: Conductive materials (like silver paste) are printed onto the film using silk-screen printing to create the circuit.
- Cutting and Shaping: The switch is then cut and shaped to meet the exact specifications, including holes for the buttons or interfaces.
Quality Control
To ensure a membrane switch performs at its best, it undergoes rigorous testing, including:
- Compression Testing: To check button durability and response.
- High-Temperature Testing: To ensure the switch can handle extreme environments without failing.
- Corrosion Resistance Testing: To ensure the switch performs well in environments where it’s exposed to harsh chemicals.
5. Real-World Industry Case Studies and Feedback
Industry Case Study
A leading medical equipment manufacturer partnered with thesunindustry to integrate high-waterproof, antimicrobial membrane switches into their devices. By combining membrane switches with their high-tech medical equipment, they reduced mechanical wear and tear, extended device life, and boosted user satisfaction by providing a more reliable and hygienic user interface.
Customer Feedback
Customers have consistently praised the membrane switches for their resilience in high-use environments, such as kitchens and smart home control panels. One user commented, “The membrane switches in my kitchen appliances have held up through years of daily use and cleaning. They look as good as new!”
6. FAQs About Membrane Switches
1. How Can I Extend the Life of a Membrane Switch?
Opt for high-quality materials, avoid excessive pressure, and clean the switch regularly to maintain its longevity.
2. What’s the Difference Between Membrane and Mechanical Switches?
Membrane switches have no moving parts, making them more durable and suitable for environments where moisture or dust is present. Mechanical switches offer tactile feedback but tend to wear out faster.
3. Can Membrane Switches Handle Extreme Conditions?
Yes, with the right material choice, membrane switches can perform well in high-temperature and high-moisture environments.
4. How is the Waterproof Performance of Membrane Switches Ensured?
Waterproofing is achieved through tight seal designs and careful selection of materials that prevent moisture from damaging the circuits inside the switch.
